Home » 3M™ Scotchlok™ 951 T-Tap Connector for Push-In Branching, Red, 600 V, 0.5-0.75 mm², 1000 Pieces/Box
3M

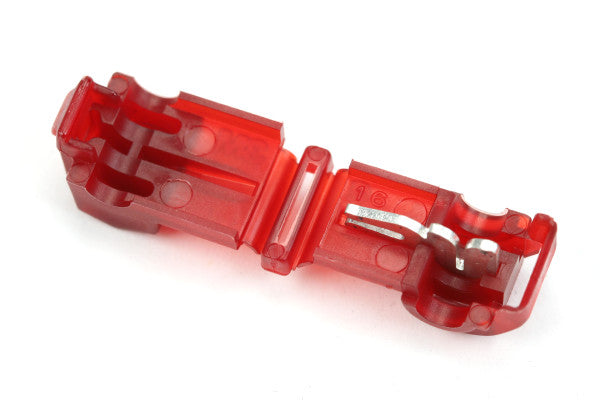

3M™ Scotchlok™ 951 T-Tap Connector for Push-In Branching, Red, 600 V, 0.5-0.75 mm², 1000 Pieces/Box

In stock
SKU: 50054007123137
€592,05 EUR incl. VAT
Recommended Crimping Tool E-9BM mechanical (slip joint) pliers Flame Retardant Yes Connection Width (metric) 6.35 mm CSA File Number LR15503, LR32411 Insulation Color Red Insulation Material Nylon Smallest Sellable Unit* Overcase Material Insulation: FR-nylon, element: tin-plated brass Max. Number of Connectable Wires 1 Maximum Operating Temperature (Celsius) 105 Degree Celsius Maximum Insulation Outer Diameter 0.150 in Maximum Insulation Outer Diameter (metric) 3.8 mm Maximum Conductor Size 1 mm² Maximum Recommended Voltage Rating 600 V Brand Scotchlok™ Minimum Conductor Size .34 mm² Interruption-Free Switching No Velcro Orientation Female Product Color Red Product Type Connector Connector Style Insulation Displacement Style Barrel Insulated Self-Stripping Tab Width 9.7 mm Connection Type Disconnect Cable and Wire Connection Type Insulation Displacement Connector - Pigtail Disconnect Type Female T-Tab UL File Number E70512, UL-registered for AWG only Connection 3M crimping tool E-9BM mechanical (slip-joint) pliers Connection Type T-tap Corrosion Protection Grease No Close Arrow Up Icon
