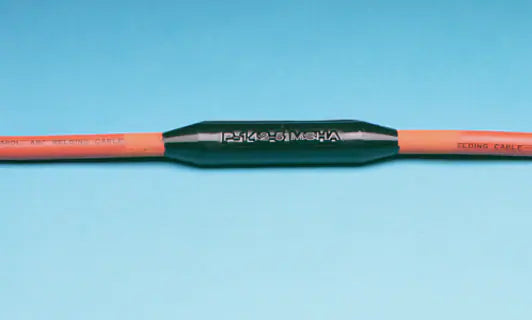

Home » 3M™ Scotchcast™ 82-F2 Cast Resin Cable Joint Sleeve for flexible cable, 0.6/1 kV, Cable-DM 20 - 30 mm
3M

3M™ Scotchcast™ 82-F2 Cast Resin Cable Joint Sleeve for flexible cable, 0.6/1 kV, Cable-DM 20 - 30 mm

Out of stock
SKU: 0051128591772
€203,03 EUR incl. VAT
Number of Conductors 3 4 Number of Conductors Single Multiple Operating Voltage Low Voltage Outer Diameter Range Insulation (metric) 20.0 - 30.0 mm Protection Type Unshielded Indoor/Outdoor Both Flame Retardancy Resin Only Dielectric Strength (V/mil) 343 V/mil Gel Time 17 minutes 73 °F (23 °C) Hardness 82 Shore A Resin Type SC 2131 Main Cable Diameter 20 - 30 mm Cable Type Multi-core, unshielded, rubber-insulated reel cables Smallest Sellable Unit* Kit Max. Connection Outer Diameter Single conductor – 0.82 inch Multiple conductors – 1.30 inch Maximum Insulation Outer Diameter (metric) 30 mm Maximum Conductor Size 120 mm² 100 mm² Maximum Voltage 5kV Brand Scotchcast™ With Screw Terminals No Mining Permit Yes Minimum Insulation Outer Diameter (metric) 20 mm Minimum Conductor Size 70 mm² 120 mm² Model Cast Resin Product Series 82-B Series Voltage 5 kV (single), 1 kV (multiple) Voltage Rating 0.6/1 kV Type mof Inline Close Arrow Up Icon
