Home » 3M™ Scotchlok™ 567 Branch Connector, Brown, 600 V, Line max. 4.0 / Branch max. 1.5 mm², 1000 Pieces / Box
3M

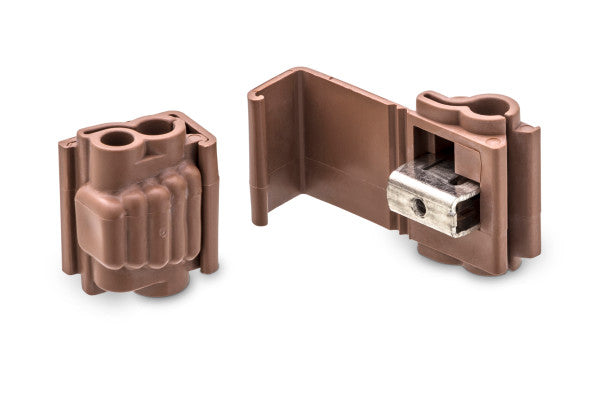

3M™ Scotchlok™ 567 Branch Connector, Brown, 600 V, Line max. 4.0 / Branch max. 1.5 mm², 1000 Pieces / Box

In stock
SKU: 50054007148956
€808,65 EUR incl. VAT
Recommended Crimping Tool E-9BM or 9 in. Linemans Pliers Operating Voltage Low Voltage Flame Retardant Yes CSA File Number LR15503, LR32411 Units per Box 250.0 Conductor Sizes 2.5 mm² (Tap) 6 mm² (Run) 1 mm² (Tap) 4 mm² (Run) Quantity per Package 1000 Insulation Color Brown Insulation Material Polypropylene Smallest Sellable Unit* Overmold Material Insulation: FR-polypropylene, U-contact: tinned brass Max. Number of Connectable Wires 2 Maximum Operating Temperature (Celsius) 105 Degree Celsius Maximum Usable Insulation Outer Diameter (metric) 4.8 mm Maximum Insulation Outer Diameter Tap (metric) 4.8 mm Maximum Conductor Size 2.5 mm² (Tap) 6 mm² (Run) Maximum Recommended Voltage Class 600 V Brand Scotchlok™ Minimum Conductor Size 1 mm² (Tap) 4 mm² (Run) Interruption-Free Switching No Product Color Brown Product Type Pass-through & Tap Connector Style Sliding Insulation UL File Number E23438 Connection 3M crimping tool E-9BM and/or 9" Lineman pliers Connection Type Pass-through & Tap Grease Filling against Corrosion Yes Moisture Resistant No Close Arrow Up Icon
