Home » DHG1900-R Hydraulic log grapple with rotation 25 - 38 ton
1410.0018

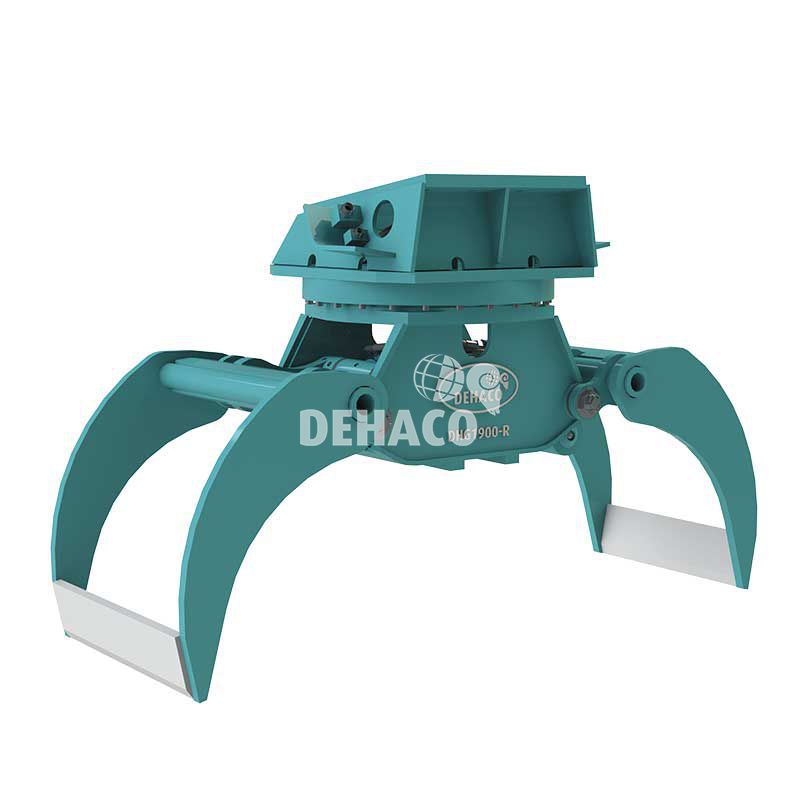

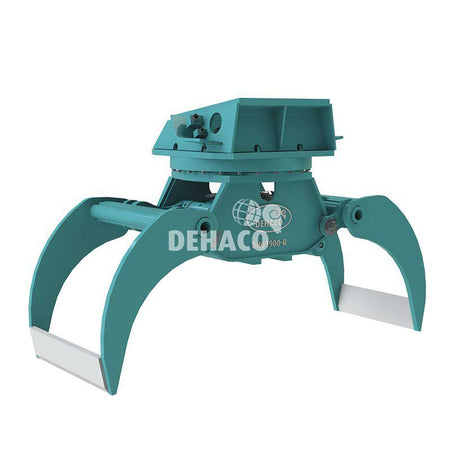

DHG1900-R Hydraulic log grapple with rotation 25 - 38 ton

SKU: 1410.0018
Quote Price on request

This is a professional Dehaco machine. Request a no-obligation quote — our specialist will be happy to advise you on the right configuration for your project.

  • Carrier weight class: 25 - 38 tons
  • Operating pressure: 350 bar
CE certified ISO 9001 40+ years of experience
Request a quote Call a specialist
Technische specificaties
Gewichtsklasse drager 25 - 38 tons
Gewicht bedrijfsklaar 1,800 kg
Werkdruk 350 bar
Oliehoeveelheid 160 l/min
Oliehoeveelheid rotatie 35 l/min
Aantal cilinders 2
Schaalbreedte 800 mm
Hoogte geopend 1,550 mm
Breedte geopend 2,050 mm
Sluitkracht 68 kN
Aantal draaimotoren 2
Werkdruk rotatie 190-210 bar
Schaalbreedte brede schaal 910 mm
Schaalbreedte smalle schaal 810 mm
Minimale diameter 200 mm
Dehaco quality
Own manufacture
Free shipping
From € 1,000
Specialist advice
By our experts
Personal service
Tailored advice
105+ professionals chose Dehaco
Direct contact with a specialist
info@dehaco.nl
+31 (0)88 200 7300
What our customers say

Dehaco always delivers quickly and accurately. Whether it's a large machine part or a small accessory — the quality is consistent and the service is excellent.

PK
Peter K. Buyer, Technical wholesale

As a regular customer of Dehaco, I appreciate the personal contact. Our account manager knows our needs and proactively thinks along on solutions.

SB
Sandra B. Facility manager, Construction company

Order placed and delivered within 2 business days. The support line is directly accessible and helps efficiently — that's worth its weight in gold in the construction sector.

RH
Rob H. Operations manager, Demolition

The DHG-R is highly maneuverable thanks to its 360° hydraulic rotation.
From the DHG602-R onwards, all models are standardly equipped with two rotary motors. A major advantage of this is that it creates a much better power distribution on the rotary table.
Hardox 400 wear-resistant blades.
All DHG-R log grippers are equipped with an oversized slewing ring. This makes all models extremely suitable for moving trees and wood.
From the DHG802 onwards, all models are equipped with two cylinders. A major advantage of this is that it creates a much better distribution of force on the scales, allowing them to close synchronously.
Due to the special cylinder arrangement and the equator, these move minimally, resulting in virtually no wear and tear on the internal hoses.
The DHG wood grabs do not use stop cams. The cylinders are equipped with a slight end damping.

Optional:

Available with a load-holding valve.
Spray painting in desired color.
Doubling the number of rotary motors
