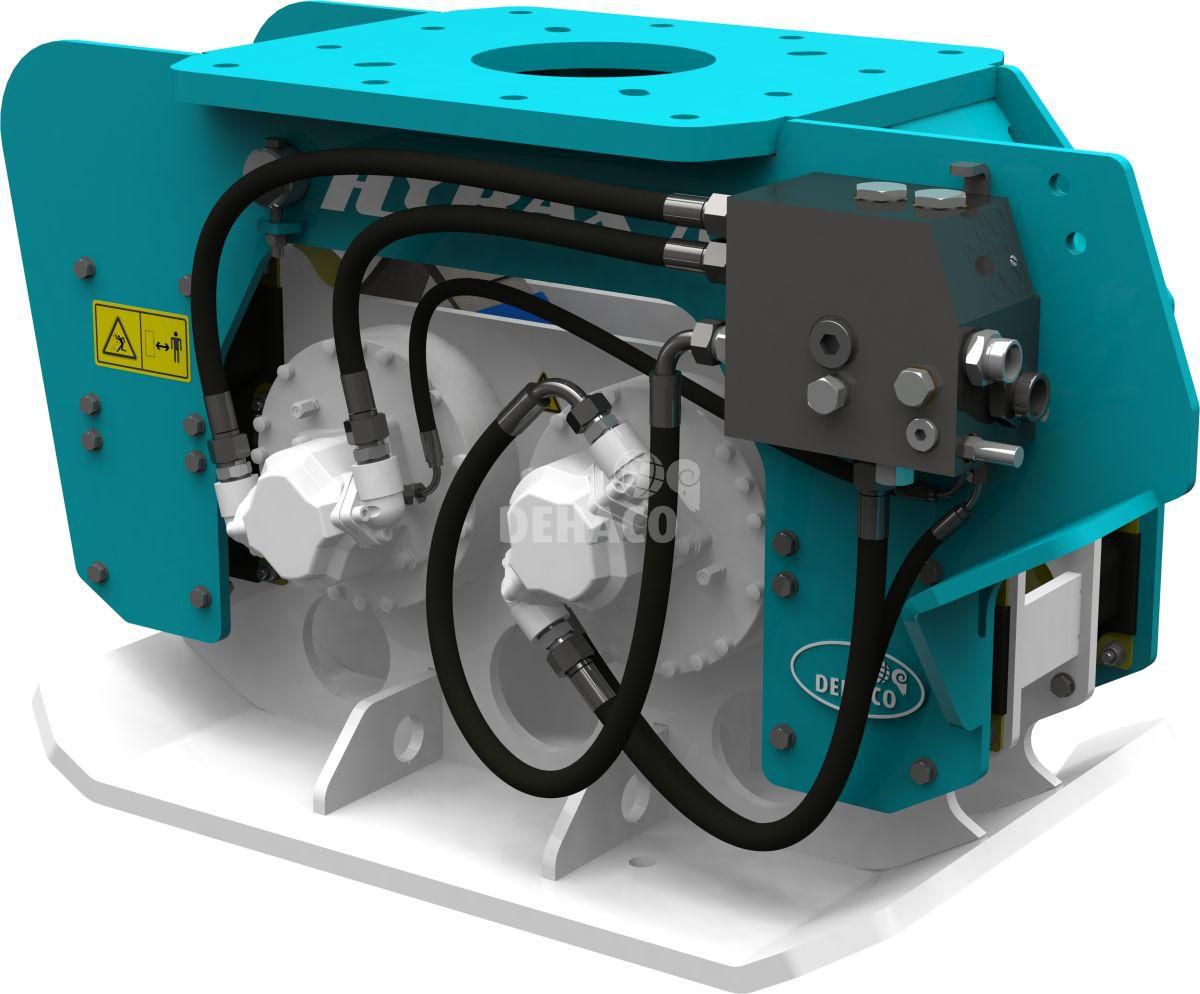

Innovation based on more than 30 years of experience has resulted in a new series of vibratory hammers with a relatively low weight and an unprecedentedly high impact force. This allows piles and sheet piles to be driven into the ground faster, even up to 10 meters underwater. The function of the vibratory hammer can be switched to soil compaction in a matter of seconds (from Hyrax 250 onwards).
The high quality - Dutch Product - guarantees top performance. With Dehaco's Intelligent Dual Power System (IDP System®), the rotation direction of the hydraulic motors can be easily adjusted for maximum efficiency. The Safety Belt System ensures that Hyrax vibrating blocks meet the strictest safety standards.
Features
Safe to use thanks to the Safety Belt safety system.
Suitable for both soil compaction and driving piles and sheet piles.
Higher performance and impact.
Very large amplitude
Easy to maintain and service.
Dutch-made and developed
Oil can be precisely shut off and adjusted with the flow control valve.
Options and accessories
To allow for quick and easy positioning of the vibrating block, both mechanical and hydraulic rotation are possible.
Weight Hyrax + Hydraulic rotation: 370 kg
Weight Hyrax + Hydraulic rotation, ready for operation: 400 kg
Weight Hyrax + Mechanical rotation: 309 kg
Weight Hyrax + Mechanical rotation ready for operation: 339 kg
Accessories can be mounted under the vibrating plate, such as a pole cap in various sizes.
A 350 kN hydraulic sheet pile clamp makes the vibratory hammer suitable for driving steel sheet piles.
