Home » 3M™ Scotchlok™ IDC Connector 314, self-stripping, Blue, 0.5 - 1.5 mm², 50 per bag, 500/case
3M

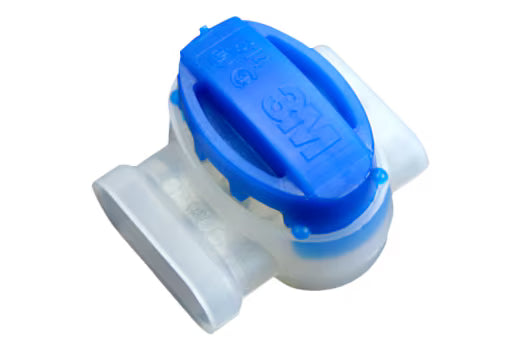

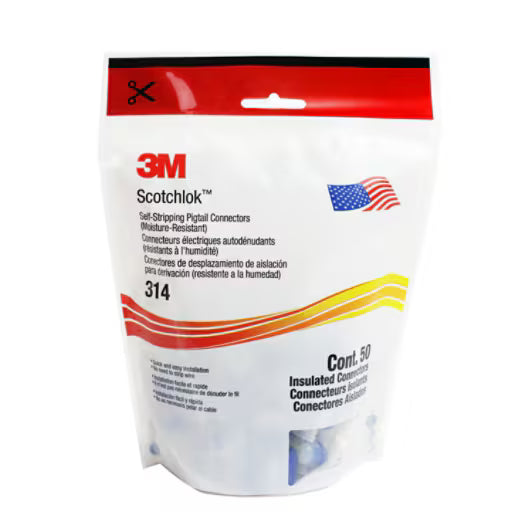

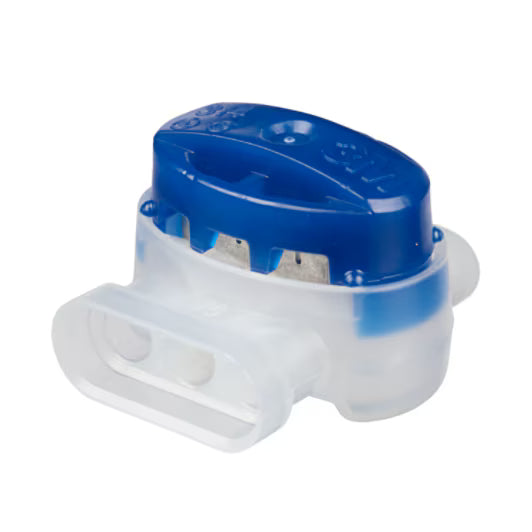

3M™ Scotchlok™ IDC Connector 314, self-stripping, Blue, 0.5 - 1.5 mm², 50 per bag, 500/case

In stock
SKU: 10054007092305
€0,96 EUR incl. VAT
Recommended Crimping Tool E-9BM and/or mechanical (slip joint) pliers Operating Voltage Low Voltage Flame Retardant Yes CSA File Number LR15503 Conductor Sizes .34 mm² 2.5 mm² Quantity per Package 50 Insulation Color cap blue, body white Insulation Material Nylon Smallest Sellable Unit* Bag Material Flame Retardant Nylon Max. Number of Connectable Wires 3 Maximum Operating Temperature (Celsius) 105 Degree Celsius Maximum Usable Outer Diameter of Insulation (metric) 3.9 mm Maximum Outer Diameter of Insulation Tap (metric) 3.9 mm Maximum Conductor Size 2.5 mm² Maximum Recommended Voltage Class 600 V Brand Scotchlok™ Minimum Conductor Size .34 mm² Uninterruptible Switching No Product Color Blue Product Type Connector Style Connector Insulation Displacement UL File Number E23438 Connection Type Pigtail Corrosion Protection Grease Yes Moisture Resistant Yes Close Arrow Up Icon
